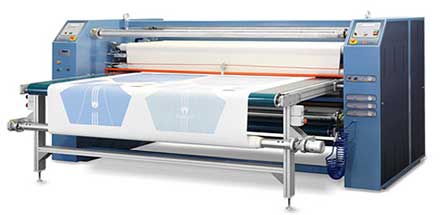

  SUBLIMATIK ROLLENPRESSE MOD. TRANS 6530 SPORT + 6530 SPORT RACE
Rotary heat transfer printer type
TRANS 6530 SPORT + 6530 SPORT RACE



TYPE 6560 SPORT
Belt feeding system with independent drive for feeding cut parts. Oil heated drum system delivering perfectly controlled heat
2- mode loading conveyor (runs continuously or intermittently with a flip of the switch).
Oil heated drum diameter 33 cm / 13”; Belt speeds of 1,07 mt/ min. or 1,17 yd / min respectively to 40 second dwell time
77” (191cm ) wide nomex felt for 72 “ (180 cm) wide printing; Electro pneumatic belt steering system
Light weight Aluminium body air shaft (allows easy lifting) ; Safety bar with reverse control
Automatic paper separator bar eliminates ghosting caused by paper shifting or fabric shrinkage.
1 exit cooling conveyor cools and take printed parts to the back side for stacking
Three independently controlled unwind and three rewind stations for roll to roll printing (fabric paper and blotting paper)
Automatic Cool down system. Adjustable digital speed control

Machine width:  230 cm / 90” Machine length:  257 cm / 101” Machine height:    155 cm / 61” Belt width:  190 cm / 77”
Belt speed: 1,07 mt/min- 3,5 ft/ min at a typical 40 second dwell time; Installed power: 16,8 KW  - 73 A / 380 V+N
Average consumption:    8KW/H- 36 A; Net weight:    1.290,00 kg / 2.843 LBS

TYPE 6560 SPORT RACE
Belt feeding system with independent drive for feeding cut parts and with 2 options ( runs continuously or intermittently )
Oil heated drum system delivering perfectly controlled heat
2- mode loading conveyor (runs continuously or intermittently with a flip of the switch)24” (61” cm dia.) oil heated drum
Belt speeds of 4,5 mt/ min. or 5 yd / min respectively to 40 second dwell time
77” (191cm ) wide nomex felt for 72 “ (180 cm) wide printing
Electro pneumatic belt steering system
Light weight Aluminium body air shaft (allows easy carrying)
Safety bar with reverse control
1 Teflon input conveyor
Automatic paper separator bar eliminates ghosting caused by paper shifting or fabric shrinkage.
2 exit cooling conveyor cools and take printed parts to the back side for stacking
Three independently controlled unwind and three rewind stations for roll to roll printing( fabric paper and blotting paper)

Machine width    377 cm / 148” Machine length   289 cm / 114”  Machine height   155 cm / 61”
Belt width:   190 cm/ 77”   Belt speed:     4,5 mt/min- 5 yd/ min  Installed power:     33 kw- 150 A - 380 V+N
Average consumption:   12 kwh- 55 A   Net weight:     1814 kg / 4000 LBS
